Canon EOS 650D wird heute vorgestellt

[00:00 Fr,8.Juni 2012 [d]  von ]

Wir werden im laufe des Tages die weiteren Infos an dieser Stelle nachreichen, jedoch geistern schon seit gestern einige Infos durchs Netz, die bereits als gesichert gelten. Der 18 MP-APS-C-Sensor scheint geblieben, also nicht neu zu sein. Kurz zusammengefasst die guten Neuigkeiten im Videobereich: Zebra, h.264-MOV-Aufzeichnung mit variabler Bitrate (ca. 5,5 MB/s), 1080p30/25/24 sowie 720p50/60, SDHC-Slot ist USH-1 kompatibel, Touchscreen.

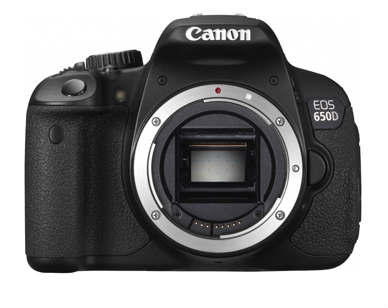

650D_1





Die schlechten Neuigkeiten sind (bisher): Kein Kopfhöreranschluss, keine All-I-Kompression.

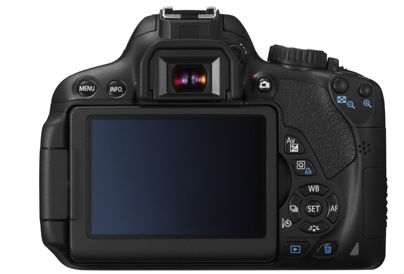

650D_2



Das große Fragezeichen ist dagegen noch offen: Moires/Aliasing-Verhalten, aber wir denken dass sich Canon dazu in kürze äußern wird.

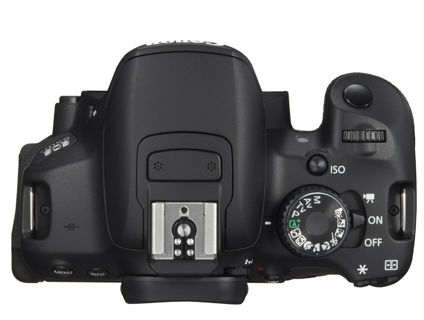

650D_3



Bis dahin hier schon mal die Feature-Liste von Canon Rumors:

Canon EOS Rebel T4i Specs

• The form of digital single-lens reflex, AF / AE camera (flash included)
• Recording media SD Memory Card, SDHC Memory Card, SDXC memory card
• * UHS-I compliant
• Image sensor size 22.3 x 14.9 mm approx.
• Canon EF lenses, the lens (EF-S Lens) Crop FaktorCrop Faktor im Glossar erklärt 1,6
• Lens Mount Canon EF mount
• Image Sensor
• Type CMOS sensors
• Approximately 18 million pixels Effective Pixels
• Aspect Ratio 3:02
• Dust features: automatic, manual, dust delete data attached

Recording System

• Recording FormatFormat im Glossar erklärt Design rule for Camera File system (DCF) 2.0
• Image format JPEG, RAW (14bit Canon proprietary method)
• Can simultaneously record RAW + JPEG Large
• Number of recorded pixels L (Large): Approximately 17.90 megapixels (5184 x 3456)
• M (Medium): approx. 8.00-megapixel (3456 x 2304)
• S1 (Small 1): Approx 4.50 megapixels (2592 x 1728)
• S2 (Small 2): Approx 2.50 megapixels (1920 x 1280)
• S3 (Small 3): Approximately 350,000 pixels (720 x 480)
• RAW: Approximately 17.90 megapixels (5184 x 3456)

Shooting image processing

• Picture Style Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Def. 1-3
• Select expression functions: shooting environment by choosing, depending on lighting and shooting scene
• White Balance Auto, Preset (Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash),

Custom

• White balance correction and white balance bracketing features
• * Flash color temperature information for communication
• Prolonged exposure and ISO noise reduction can be applied to shooting with high sensitivity
• Auto Lighting Optimizer automatically calibrate the brightness of the image
• Highlight tone Priority
• Ambient light correction lens aberration correction, chromatic aberration correction

Viewfinder

• Type Eye-level pentaprism
• Coverage Vertical / Horizontal approx 95% (approximately eyepoint 19mm)
• Magnification approximately 0.85x (with 50mm lens at infinity -1 m-1)
• Eyepoint approximately 19 mm (-1 m-1 from eyepiece lens center at)
• Built-in diopter adjustment of about -3.0 – +1.0 m-1 (dpt)
• Focusing Screen Fixed, Precision Matte
• Mirror Quick-return type
• Provide depth of field preview

Autofocus

• Type of image-registration, phase detection TTL 2
• Nine cross-type AF points AF points (f/2.8 at the center AF point detects cross-type AF)
• Focusing brightness range EV-0.5-18 (23 ° C in, ISO 100)
• AF operates One-Shot AF, AI Servo AF, AI Focus AF
• Continuous built-in flash AF assist lamp flashes by

Exposure Control

• Metering modes 63-zone TTL full aperture metering
• Evaluative metering (linkable to any AF point)
• Partial metering (approx. 9% of viewfinder at center)
• Spot metering (approximately 4% of viewfinder at center)
• Center-weighted average metering
• Metering range EV 1 – 20 (23 ℃, ISO 100)
• Exposure Control Program AE (Auto Intelligent Scene, Flash Off, Creative Auto, Portrait, Landscape, Close-up, Sports, Night Portrait,
• Night shooting without a tripod, HDR backlight compensation, Program), shutter-priority AE, ApertureAperture im Glossar erklärt Priority AE, Manual Exposure
• ISO sensitivity (Recommended Exposure Index) Basic Zone modes: ISO 100 – 3200 range is assigned automatically by
• * Portrait: ISO 100, shooting without a tripod at night: ISO 100 – 12800 automatically sets the
• Creative Zone modes: ISO 100 – 12800 in the range specified in the manual (1 stop increments), ISO 100 – 6400 range, automatically assigned,
• ISO sensitivity up to ISO can be set automatically or ‘H’ (ISO 25600 equivalent) to the ISO extension
• Manual Exposure Compensation 1/3 or 1/2 stop increments ± 5 stops
• AEB: 1/3 or 1/2 stop increments ± 2 stops (in conjunction with manual exposure compensation possible)
• AE Lock Automatic: When focus is achieved with evaluative metering applies in One-Shot AF mode
• Manual: AE lock button and use the

Shutter

• Format electronically controlled focal-plane shutter
• Shutter Speed 1/4000 seconds to 1/60 sec (Scene Intelligent Auto mode), 1/200 sec X – Sync.
• * If you use wide-angle lens, a shutter speed of 1/60 sec or less can be. 1/4000 to 30 seconds, bulb
• (Total shutter speed range. ShutterShutter im Glossar erklärt speed range varies by shooting mode.)

Flash

• Built-in Flash Auto pop-up flash
• Guide No.: About 13/43 (ISO 100, m / ft)
• Flash Range: 17mm lens angle of about
• Charging time about 3 seconds.
• Provides wireless master unit
• EX-series Speedlite external flash (the camera flash functions can be set in).
• Flash metering E-TTL II auto flash
• Flash Exposure 1.3 or 1.2 stop increments ± 2 stops in
• FE lock available
• No PC terminal

Drive System

• Drive mode, every shot, continuous shooting, 10 seconds or 2-second delay self-timer, continuous shooting 10-second delay
• Continuous shooting speed up to about 5 frames / sec.
• Continuous shooting JPEG Large / Fine: Approx 22 (30) each
• RAW: approximately six (6) every
• RAW + JPEG Large / Fine: Approx 3 (3) every
• * Figures with 8GB card Canon testing standards (ISO 100, ‘Standard’ Picture Style) is based.
• * The figures in parentheses UHS-I compatible with the 8GB card is based on Canon testing standards.

LCD Monitor

• Type TFT color LCD monitor
• Monitor size and dots wide, 7.7cm (3.0 inch) (3:02), approximately 1.04 million dots
• Angle can be adjusted
• Adjust the brightness manually (step 7)
• 25 language interface languages
• Capacitive sensing touch screen technology
• Feature can be displayed

Playback

• Image Display FormatFormat im Glossar erklärt Single, Single image + information (basic information, the shooting information, histogram), four each index, every index of 9, the image can be rotated
• Approximately zoom 1.5x – 10x

Live View shooting

• Set Aspect Ratio 3:2, 4:3, 16:9, 1:1
• Hybrid CMOS AF focusing system * (+ tracking, FlexiZone-Multi, FlexiZone-Single), phase difference detection method (quick mode)
• Manual focus (approximately 5x / 10x magnification possible)
• * Focusing brightness range: EV 1-18 (23 ℃ in, ISO 100)
• Continuous AF can
• Can touch the shutter
• Real-time image sensor Metering mode Metering
• Evaluative metering (315 segments), partial metering (approximately 8.8% of the Live View screen), spot metering (approximately 2.8% of the Live View screen), Center-weighted average
• Metering range EV 0 – 20 (23 ℃, ISO 100)
• Display two kinds of lattice

Video recording


• MPEG-4 AVC/H.264 video compression
• Variable (average) bitrate
• Linear PCM audio recording format
• MOV video recording format
• Record the size and
• Frame Rate 1920×1080 (Full HD): 30p/25p/24p
• 1280×720 (HD): 60p/50p
• 640×480 (SD): 30p/25p
• * 30p: 29.97 fps, 25p: 25.00 fps, 24p: 23.976 fps, 60p: 59.94 fps, 50p: 50.00 fps
• File size 1920×1080 (30p/25p/24p): approximately 330 MB / minute
• 1280×720 (60p/50p): approximately 330 MB / minute
• 640×480 (30p/25p): Approximately 82.5 MB / minute
• Hybrid CMOS AF focusing system * (+ tracking, FlexiZone-Multi, FlexiZone-Single)
• Manual focus (approximately 5x / 10x magnification possible)
• * Focusing brightness range: EV 1-18 (23 ℃ in, ISO 100)
• Evaluative metering with image sensor Metering mode and center-weighted pyeonggyuncheukgwang
• * Set the focusing mode automatically, depending on
• Is Servo AF
• Metering range EV 0 – 20 (23 ℃, ISO 100)
• Exposure Control Program AE and Manual Exposure for Video
• Exposure Compensation 1.3 stop increments ± 3 stops (stop pictures: ± 5 stops).
• ISO sensitivity
• (Recommended Exposure Index) Auto exposure shot: ISO 100 – 6400 within the scope of the automatic setting manual exposure, ISO 100 – 6400 within the auto / manual settings,
• H (ISO 12800 equivalent), expandable to
• Video Snapshot 2 seconds / 4 seconds / 8 seconds can be set
• Built-in Stereo Microphone Recording
• Provides an external stereo microphone jack
• Adjustable recording level, wind filter, providing
• Attenuator provides
• Display two kinds of lattice
• Flashing warning highlights overexposed highlight areas
• How a single image, image display, image 100 sheets of 10 hawk jump, jump a CAT scan, folder, jump, jump video, still images, jump, jump grade
• Images can be rotated
• Provided ratings
• Videos can be played (LCD monitors, video / audio output, HDMIHDMI im Glossar erklärt OUT)
• Built-in Speaker
• Images can be protected
• All images slide show, date, folder-, video, still images or five kinds of transitions can be selected rating
• Background music for slideshows and video playback can be selected
• Image processing
• Coarse filter effects, monochrome, soft focus, fisheye lens effect, painting effects, color effects, and toy camera effects and miniature effects
• Can be resized

Direct Printing

• Compatible with PictBridge-compatible printer, the printer
• Printable images JPEG and RAW images
• Compatible with DPOF version 1.1 of the print command

User Settings

• 8 kinds of user-defined functions
• My menu can be registered
• Copyright information can be entered and stored

Interface

• Audio / Video output /
• Digital terminal analog video (NTSC / PALPAL im Glossar erklärt selectable) / stereo audio output
• PC communication and direct printing (Hi-Speed USB), GPS Receiver GP-E2 connection
• HDMI mini OUT terminal C-type (resolution, auto-switching), CEC-compatible
• The external microphone input terminal
• 3.5mm diameter stereo mini-jack
• Remote Switch RS-60E3 Remote Control for Terminals
• Remote Controller RC-6 Wireless Remote Control compatible
• Eye-Fi card can be used

Power

• Battery Battery Pack LP-E8 (1 reviews)
• * AC power via AC Adapter Kit ACK-E8 can be used.
• * With Battery Grip BG-E8 AA-size when attaching / LR6 batteries can be used.

Battery Life

• (CIPA test standards basis)
• Viewfinder when shooting: 23 ℃ approximately 440 sheets, 0 ℃ approximately 400 sheets
• Live View shooting: 23 ℃ approximately 180 shots, 0 ℃ approximately 150 sheets
• Video recording time approximately 1 hour and 40 minutes at 23 ℃
• About 1 hour and 20 minutes at 0 ℃
• (Fully charged Battery Pack LP-E8 is used)

Size and Weight

• Dimensions (W x H x D) 133.1 x 99.8 x 78.8 mm approx.
• Weighs about 575 g (CIPA guidelines), approximately 520 g (body only)
• Operating Environment
• Operating temperature range 0 ℃ ~ 40 ℃
• Operating Humidity 85% or less
• Battery Pack LP-E8
• Type of rechargeable lithium-ion battery
• Rated voltage 7.2 V DC
• 1120 mAh battery capacity
• Operating temperature range when charging: 6 ℃ ~ 40 ℃
• Shooting: 0 ℃ ~ 40 ℃
• Operating Humidity 85% or less
• Dimensions (W x H x D) Approx 37.1 x 15.4 x 55.2mm
• Weight about 52g
• Battery Charger LC-E8
• Compatible Battery Battery Pack LP-E8
• Charging time Approximately 2 hours (23 ° C in a)
• Rated input / output rated input: 100 – 240 V AC (50/60 Hz)
• Rated output: 8.4 V DC / 720mA
• Operating temperature range 6 ° C ~ 40 ° C
• Operating Humidity 85% or less
• Dimensions (W x H x D) Approx 69 x 28 x 87.5mm

• Weight about 82
• Battery Charger LC-E8E
• Compatible Battery Battery Pack LP-E8
• Charging time Approximately 2 hours (23 ℃ in a)
• Rated input / output rated input: 100 – 240 V AC (50/60 Hz)
• Rated output: 8.4 V DC / 720mA
• Operating Temperature Range 6 ℃ – 40 ℃
• Operating Humidity 85% or less
• Dimensions (W x H x D) Approx 69 x 28 x 87.5mm
• Weight about 82g

Preis und Verfügbarkeit sollten auch bald folgen...


Link mehr Informationen bei www.canonrumors.com


[36 Leserkommentare] [Kommentar schreiben]   Letzte Kommentare:
kmw    12:45 am 19.7.2012
Jetzt habe ich das 18-135 STM und die erste halbe Stunde "Spiel"erfahrung damit. Positiv: es ist absolut leise, auch in einer ruhigen Umgebung hört man vom AF nichts. Zudem...weiterlesen
kmw    15:37 am 11.7.2012
Mal ein kleinen Test bzg Moire auf Youtube hochgeladen. Solange die Kamera still steht passiert gar nichts, erst während des zoomens sieht man etwas. Allerdings kommt das um das...weiterlesen
kmw    15:47 am 9.7.2012
Danke! Naja, zumindest kann man kontrollieren was aufgezeichnet wird. Aber ich warte erst mal auf die ML Lösung.....
[ Alle Kommentare ganz lesen]

  Vorige News lesen Nächste News lesen
bildStereo3D Toolbox 4.0 für After Effects, FCP und Motion bildCanon EOS 650D jetzt bestätigt


verwandte Newsmeldungen:
Video-DSLR:

Sony FX3 vorgestellt - die bessere Sony Alpha 7S III für Filmer 23.Februar 2021
Nikon entwickelt 1 Zoll 4K-Sensor mit 18 -22 Blendenstufen 21.Februar 2021
Nikon Z6/Z7 II-Kameras - Neue Firmware, neues Movie Kit und Blackmagic RAW 18.Februar 2021
Panasonic stellt videooptimiertes Lumix S Telezoom 70-300mm, 4.5-5.6 MAKRO OIS vor 18.Februar 2021
Neue Alpha-Kamera in der Sony Cinema Line kommt demnächst 17.Februar 2021
Sony FX6 Zubehör: Shape stellt umfangreiche Rig-Optionen für die Sony FX6 vor 16.Februar 2021
Firmware-Update 2.0 für Sony ZV-1 bringt besseres Live Streaming per USB 15.Februar 2021
alle Newsmeldungen zum Thema Video-DSLR

Canon EOS C300:

Canon EOS C70 und Panasonic Lumix BGH1 sind ab sofort Netflix zertifiziert 18.Dezember 2020
Kostenloses Canon EOS Webcam Utility ist jetzt auch für macOS final 25.November 2020
Kostenloses Canon EOS Webcam Utility ist jetzt final 21.September 2020
Firmware-Update: Canon EOS R6 filmt jetzt auch länger 10.September 2020
Auch die Canon EOS 1D-X Mark III soll Log3 Option bekommen 30.August 2020
Canon EOS R5 - Neue Firmware u.a. für längere Aufnahmezeiten 27.August 2020
Canon EOS R5 und R6 vorgestellt - Stabilisiertes Vollformat bis 8K RAW mit Dual Pixel AF 9.Juli 2020
alle Newsmeldungen zum Thema Canon EOS C300

Camcorder:

Neue On Semi XGS 45000 S35-Sensoren - Vorboten auf ARRIs neue Kamera(s)? 22.Februar 2021
Frame.io Camera to Cloud: Cloud-basierter Echtzeit-Workflow von der Kamera bis zum Schnitt 22.Februar 2021
Blackmagic Pocket Cinema Camera 6K Pro - mit integriertem ND-Filter und optionalem Sucher 17.Februar 2021
Neue Alpha-Kamera in der Sony Cinema Line kommt demnächst 17.Februar 2021
Heute abend: Blackmagic Atem Mini und Camera Update Ankündigungen per Live Stream 17.Februar 2021
Sundance 2021: Die Kamera-Liste - ARRI und Canon auf Platz 1 - Blackmagic Pocket auch dabei 3.Februar 2021
Octopus Kamera aus Standard-Komponenten - jetzt mit 8K RAW Versprechen 3.Februar 2021
alle Newsmeldungen zum Thema Camcorder


[nach oben]

















passende Forenbeiträge zur News:

Archive

2021

Februar - Januar

2020
Dezember - November - Oktober - September - August - Juli - Juni - Mai - April - März - Februar - Januar

2019

2018

2017

2016

2015

2014

2013

2012

2011

2010

2009

2008

2007

2006

2005

2004

2003

2002

2001

2000






































update am 24.Februar 2021 - 18:02
ist ein Projekt der channelunit GmbH
*Datenschutzhinweis*
